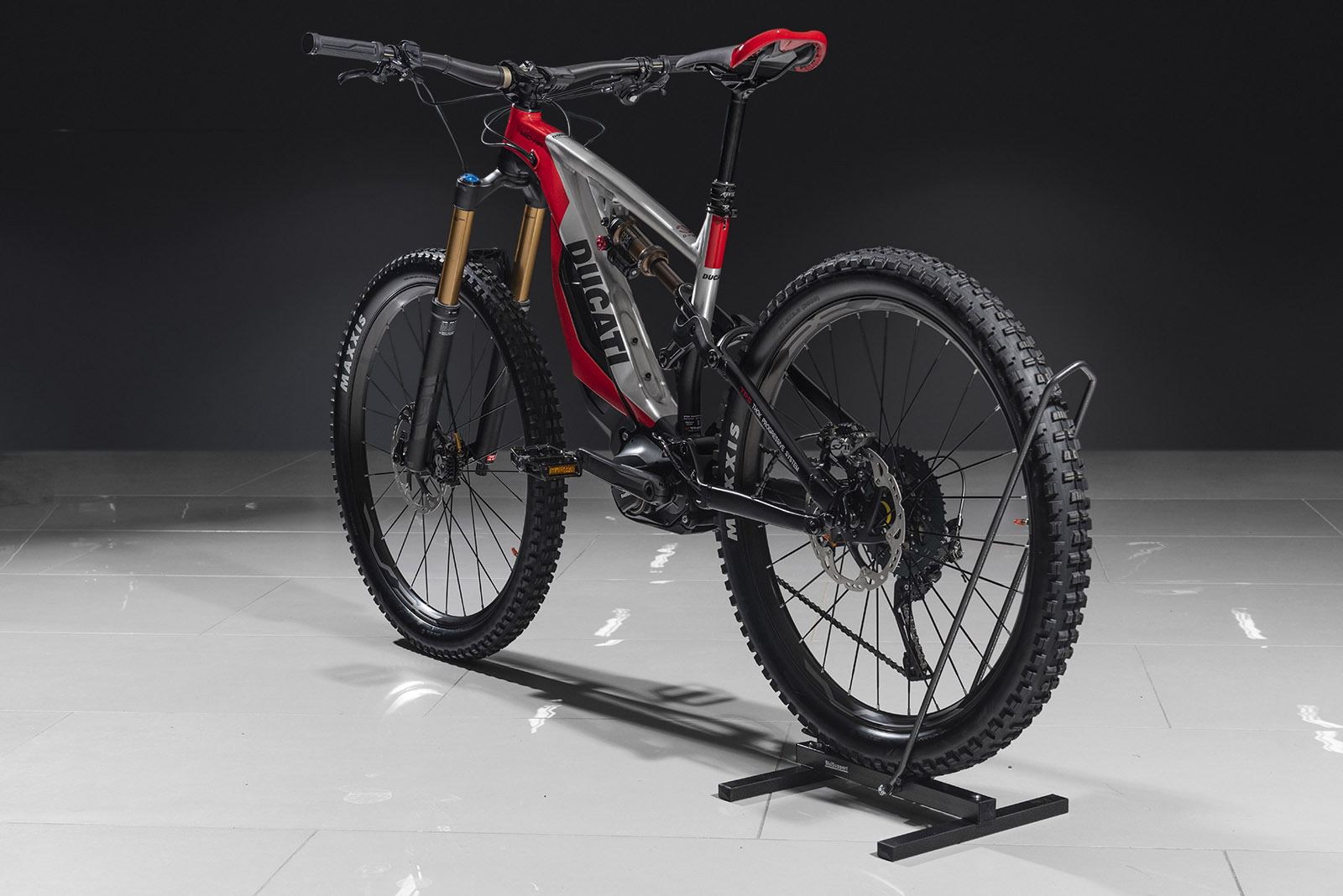

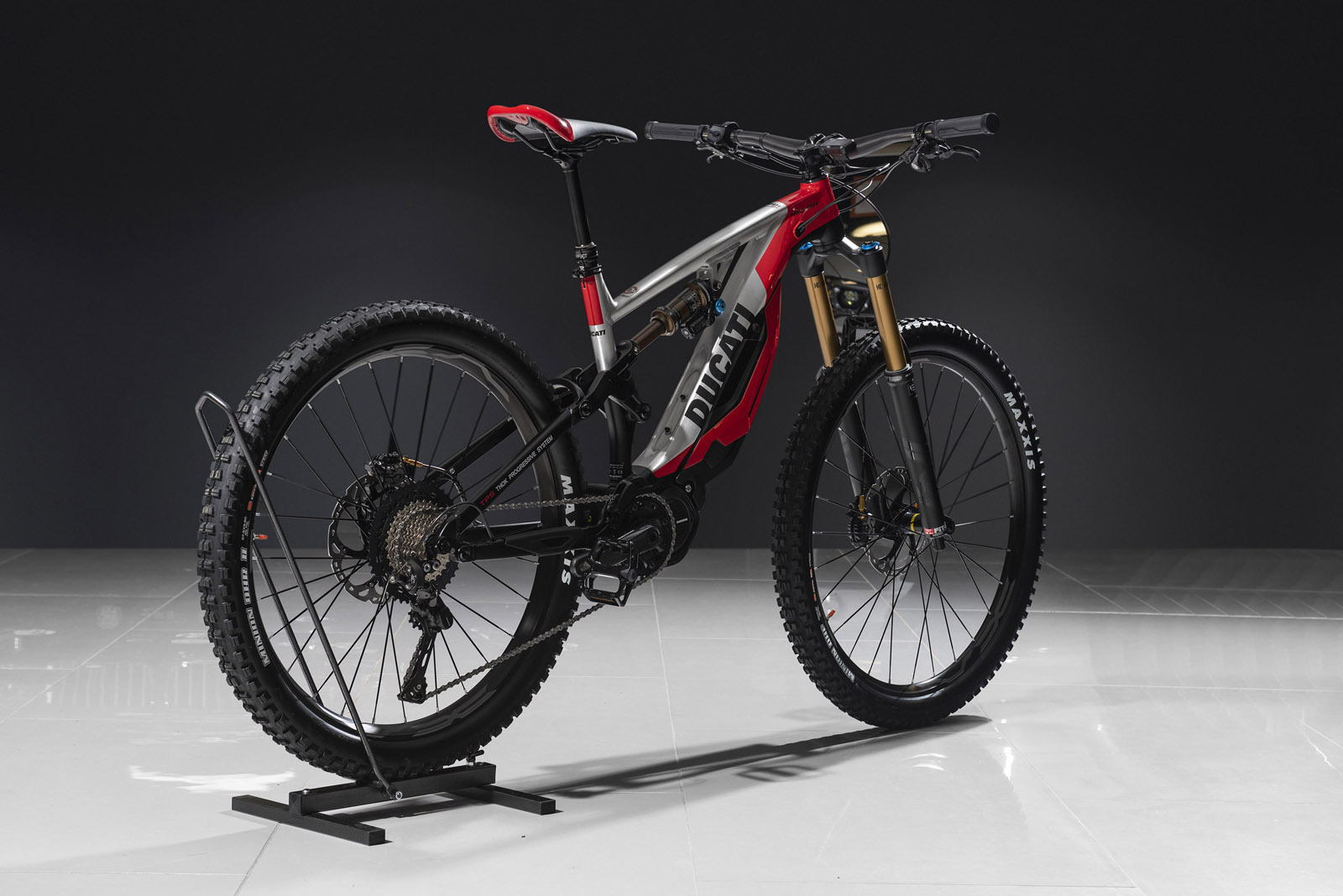

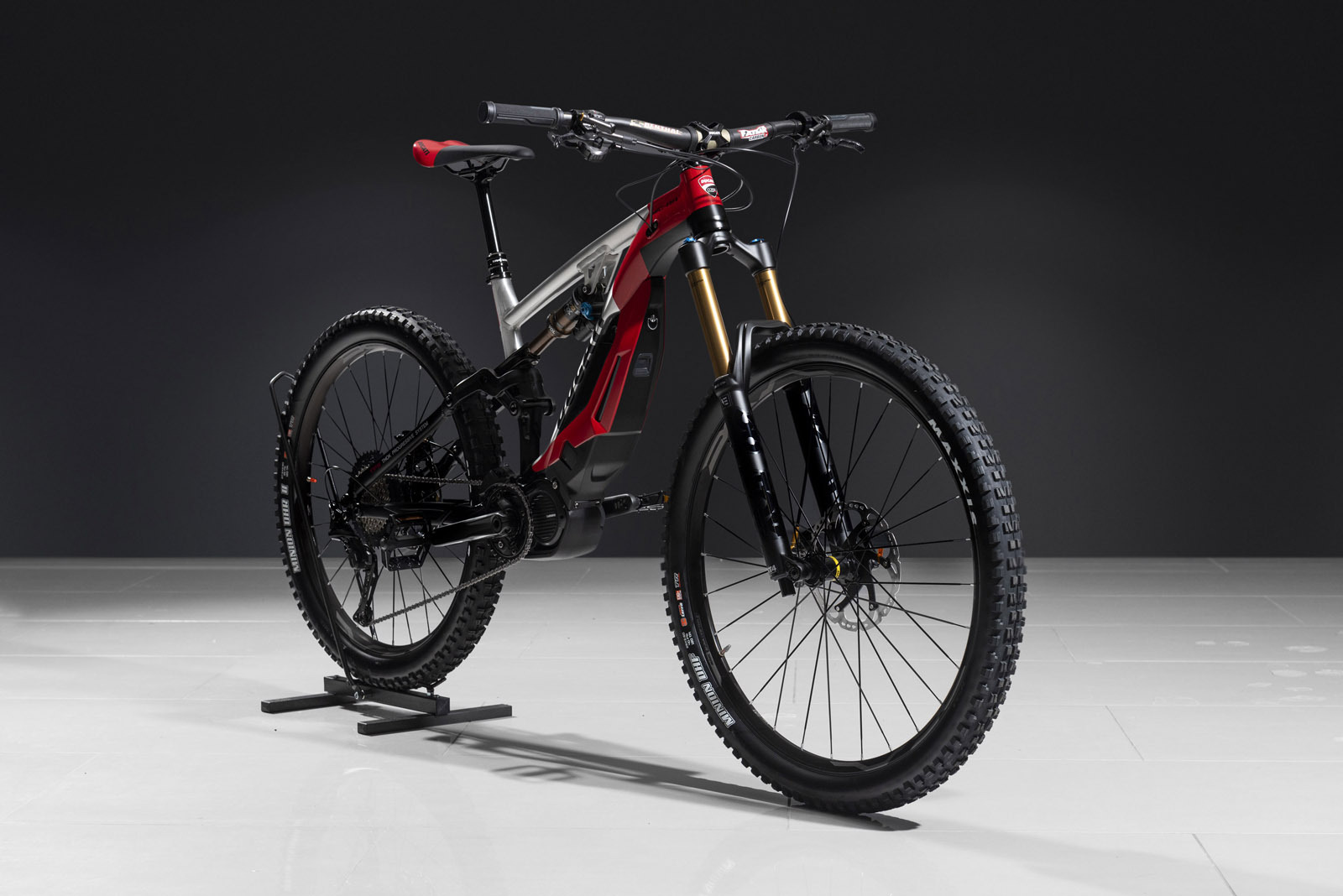

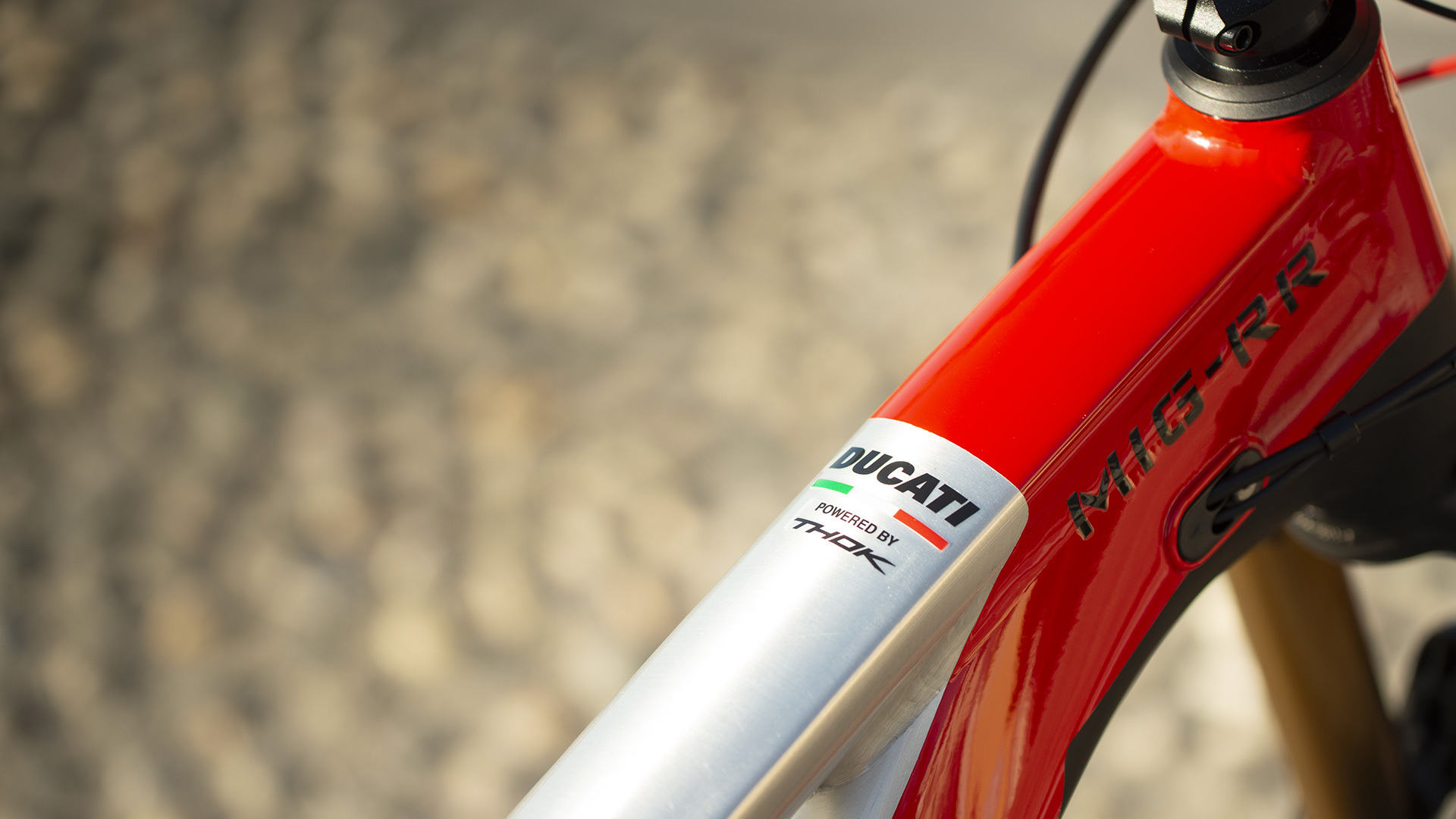

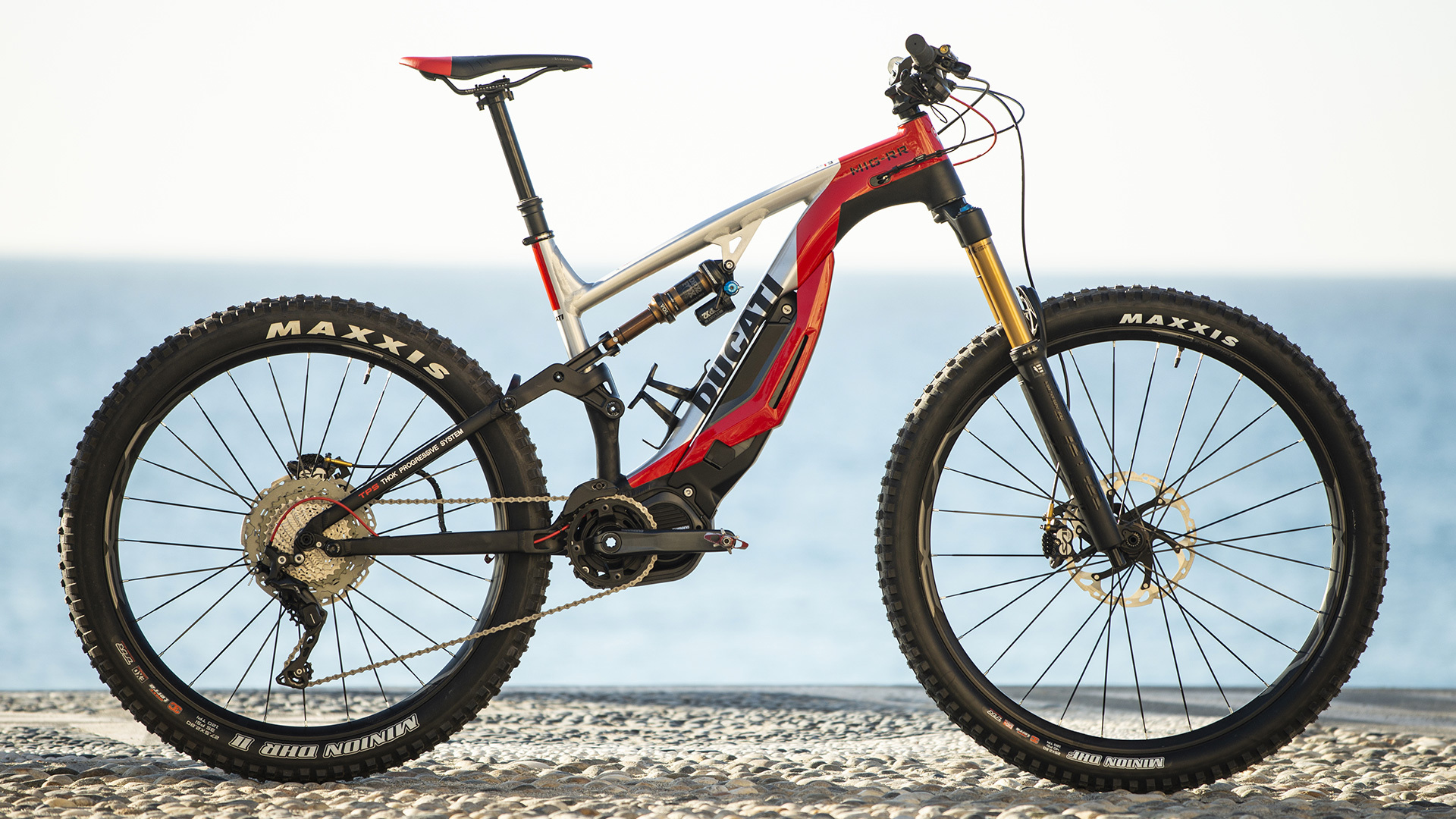

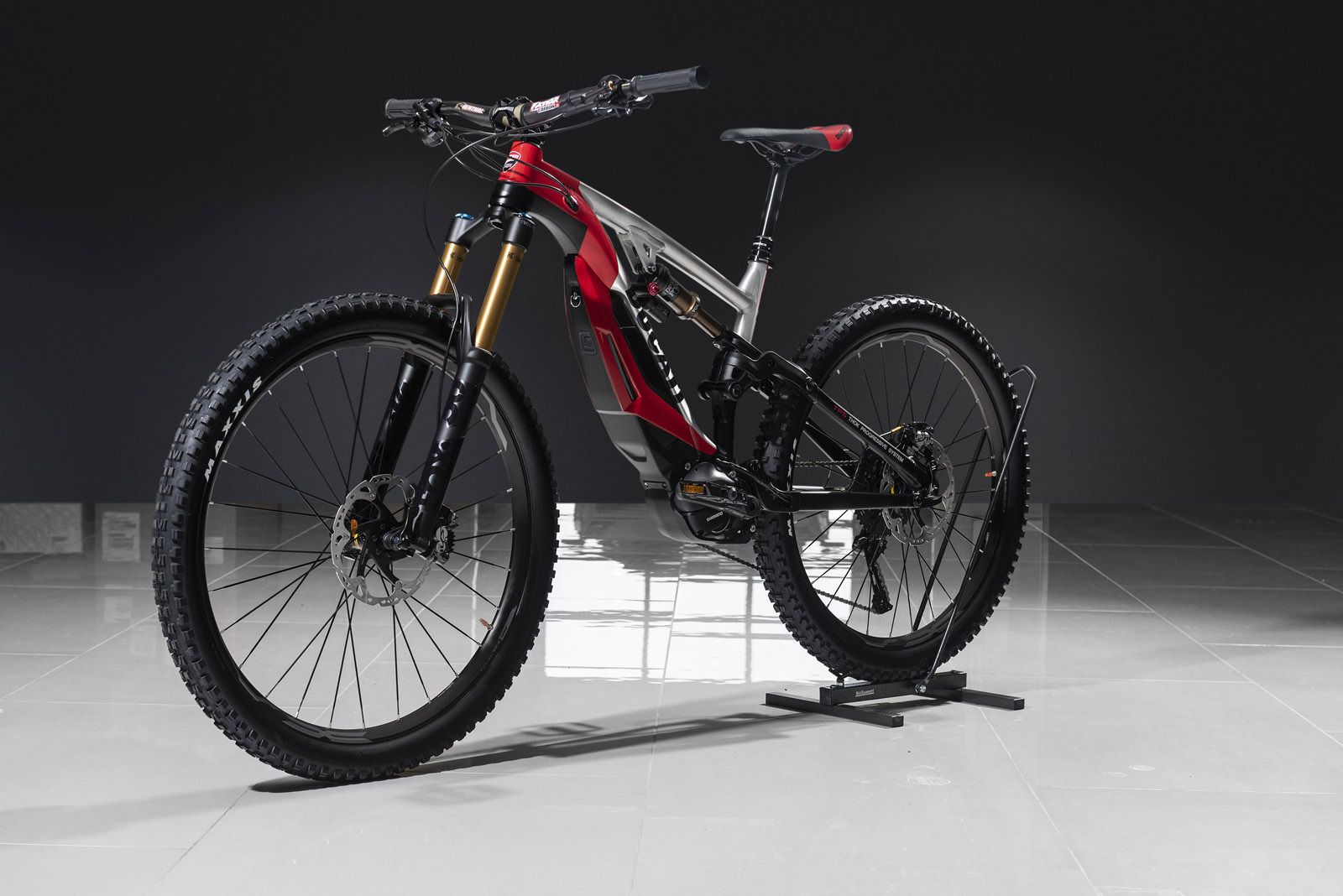

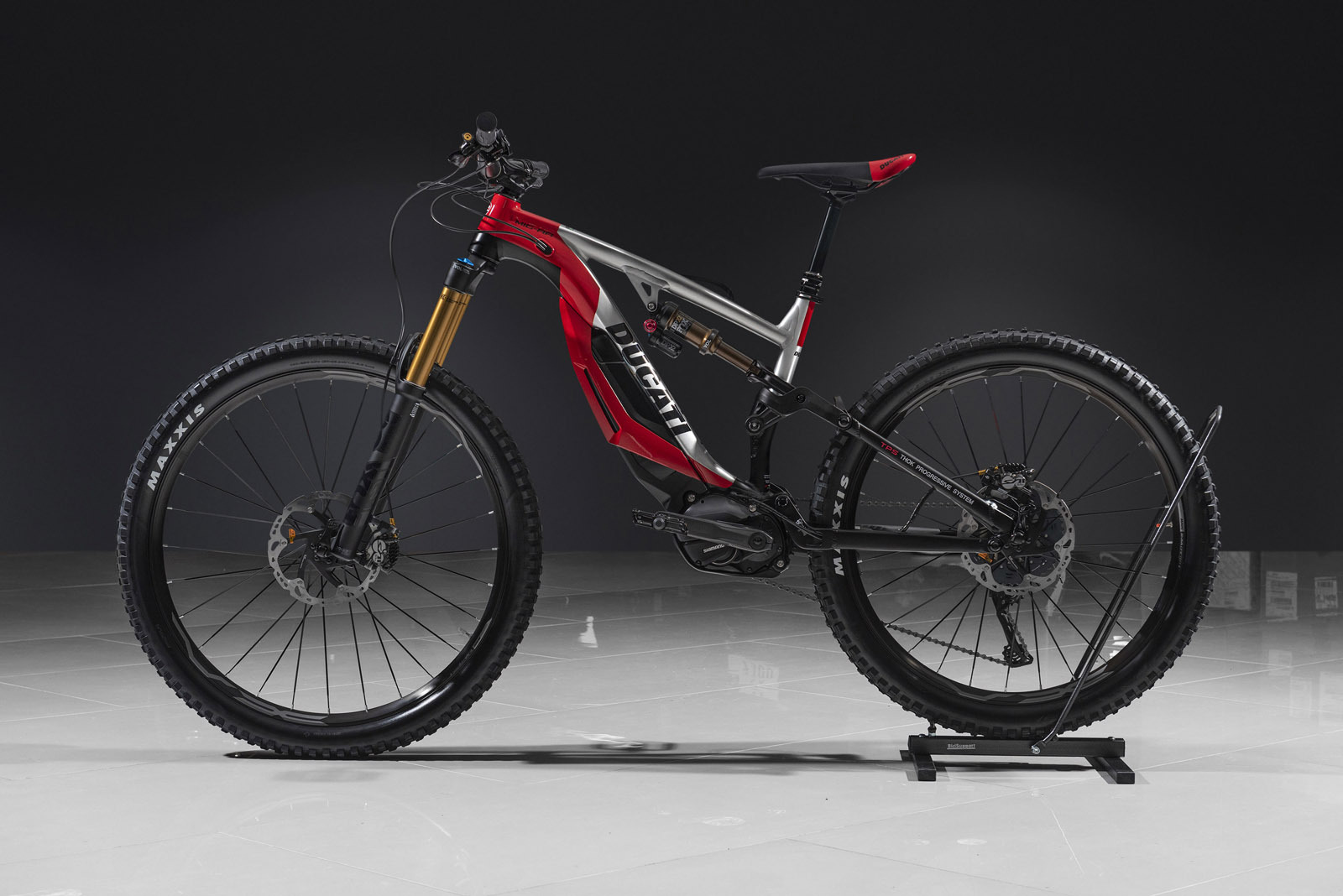

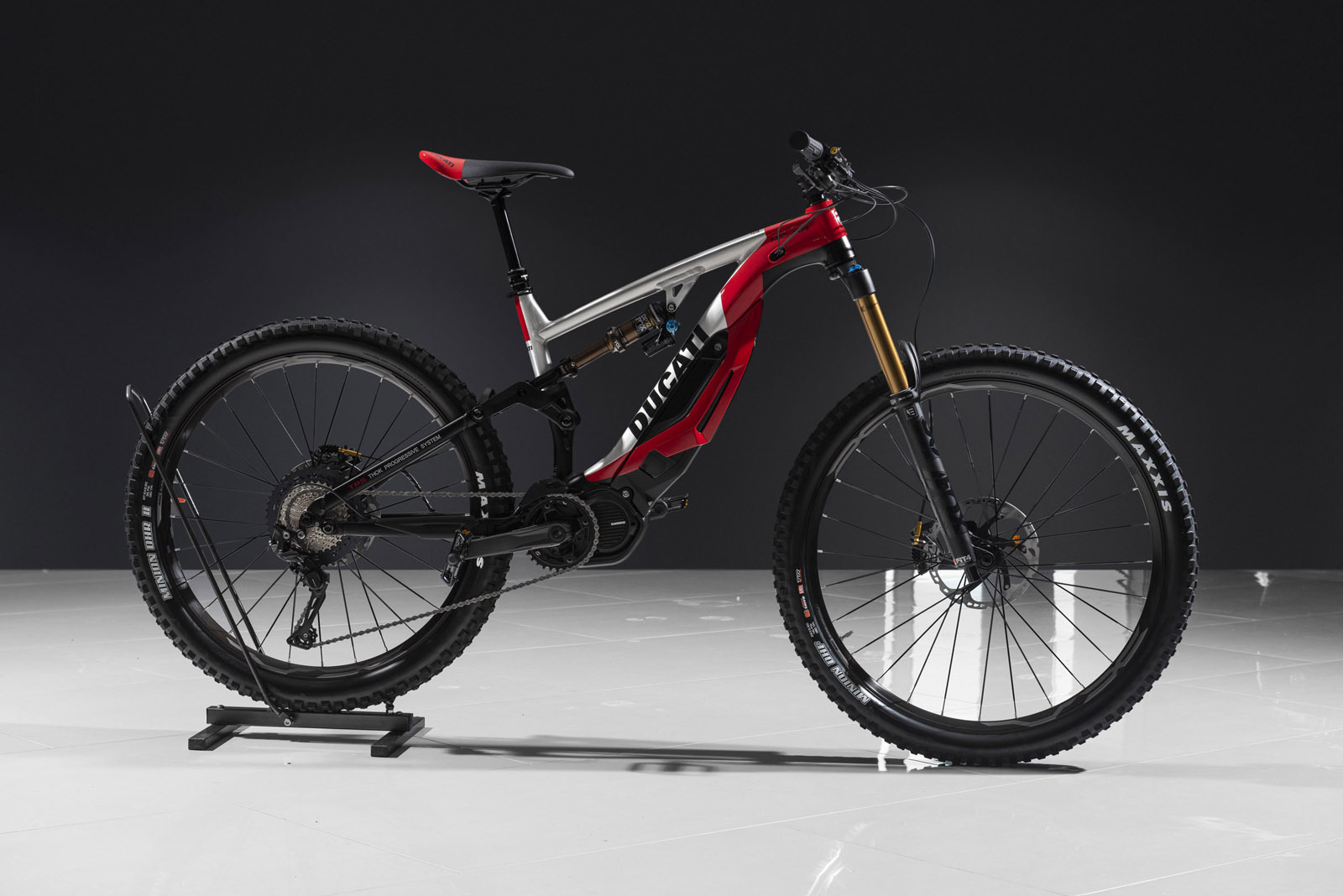

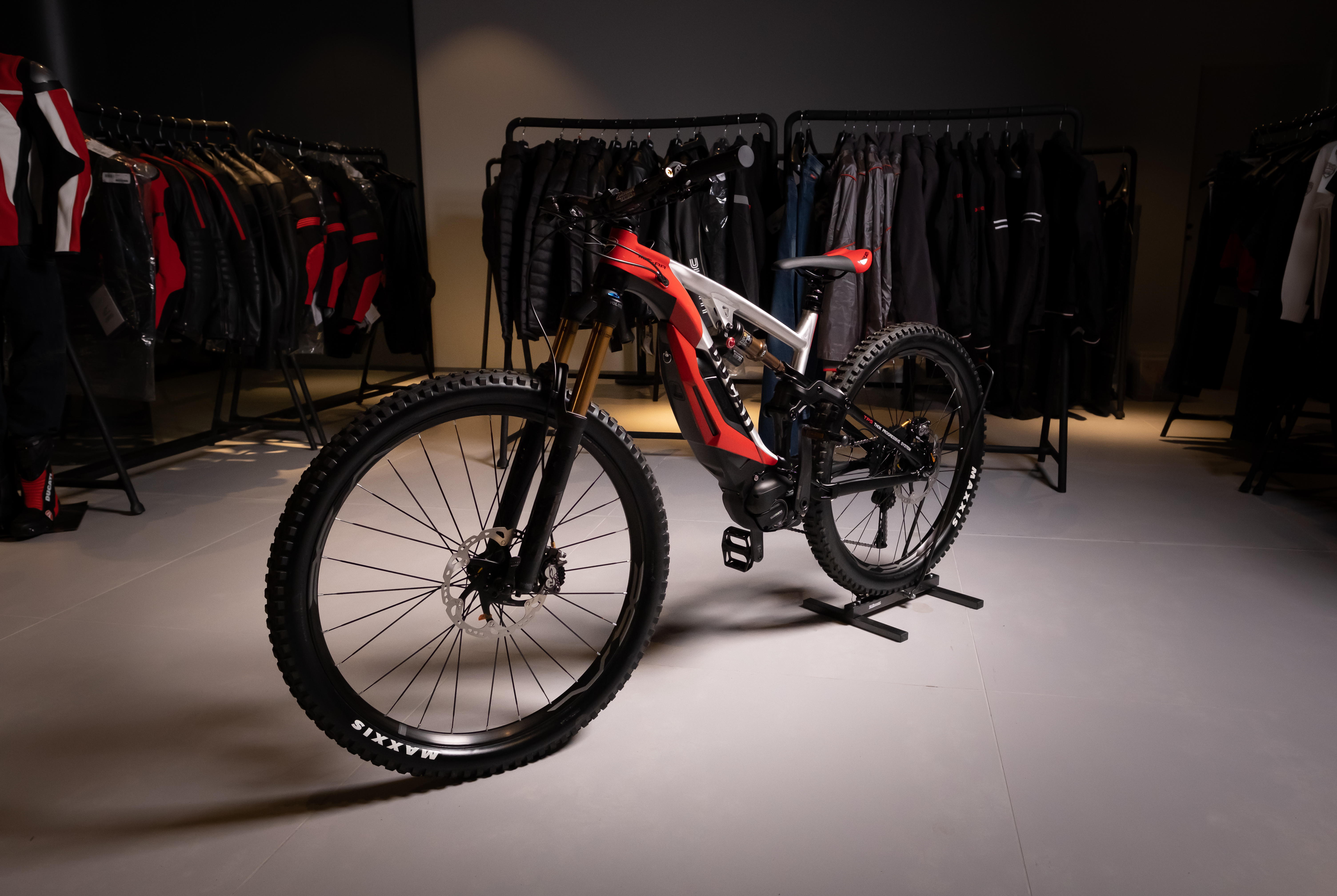

MIG-RR
12350
Size (mm) | S | M | L | XL | |
|---|---|---|---|---|---|
Seat Tube Length - center to Top | 400 | 435 | 470 | 520 | A |
Top Tube Lenght , Orizzontal | 560 | 585 | 615 | 650 | D |
ChainStay Length | 450 | 450 | 450 | 450 | E |
Seat Tube Angle (°) | 74,5° | 74,5° | 74,5° | 74,5° | G |
Head Tube Angle (°) | 65,7° | 65,7° | 65,7° | 65,7° | F |
Head Tube Length | 100 | 100 | 130 | 150 | K |
Wheel Base | 1172 | 1197 | 1228 | 1265 | I |
Stack | 596 | 606 | 624 | 642 | C |
Reach | 405 | 426 | 450 | 479 | B |
Handlebar Width | 780 | 780 | 780 | 780 | |
Stem Length | 50 | 50 | 50 | 50 | |
Crank Length | 170 | 170 | 170 | 170 | |
BB Hight | 358 | 358 | 358 | 358 | M |
Fork Offset | 51 | 51 | 51 | 51 | L |

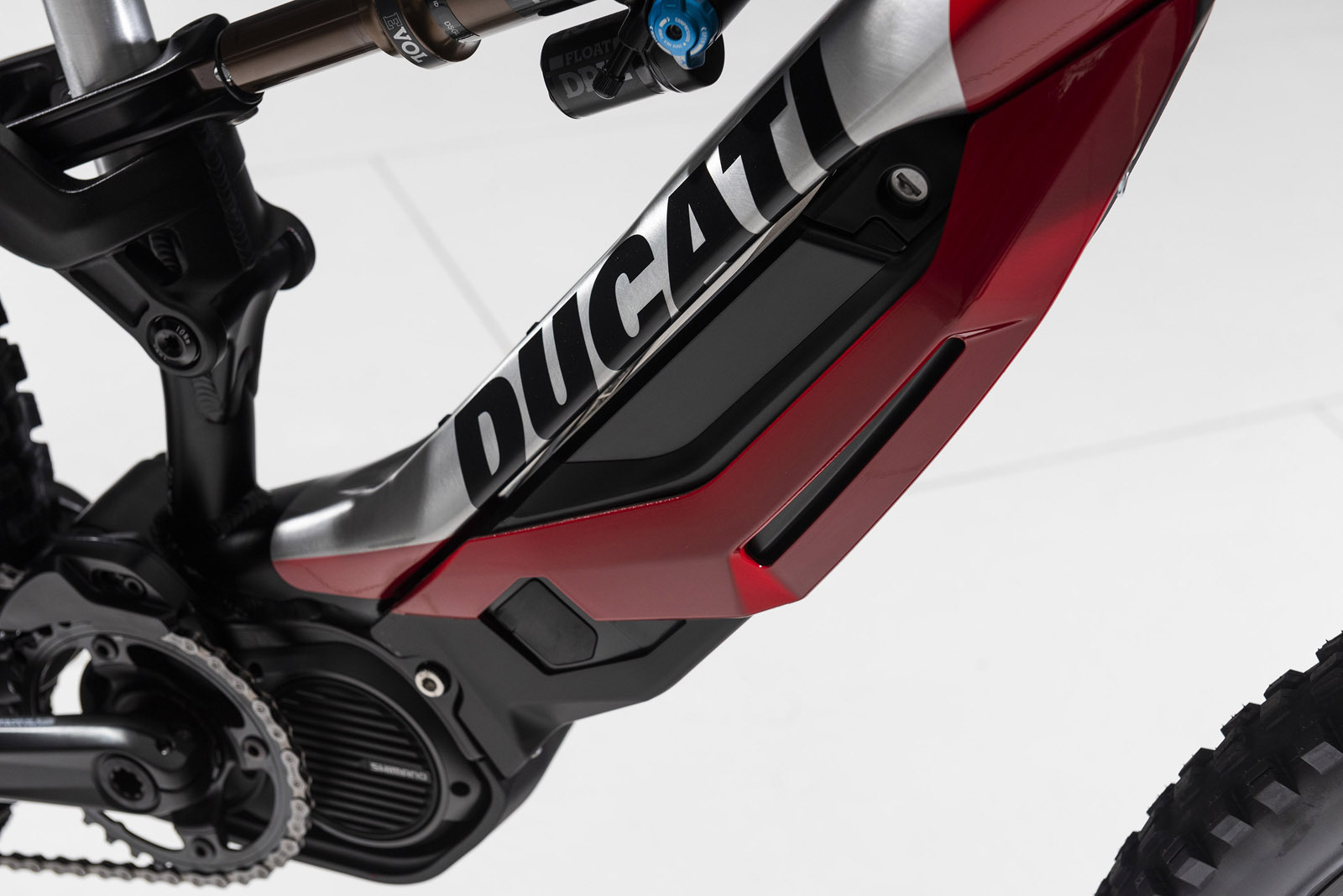

- ENGINE

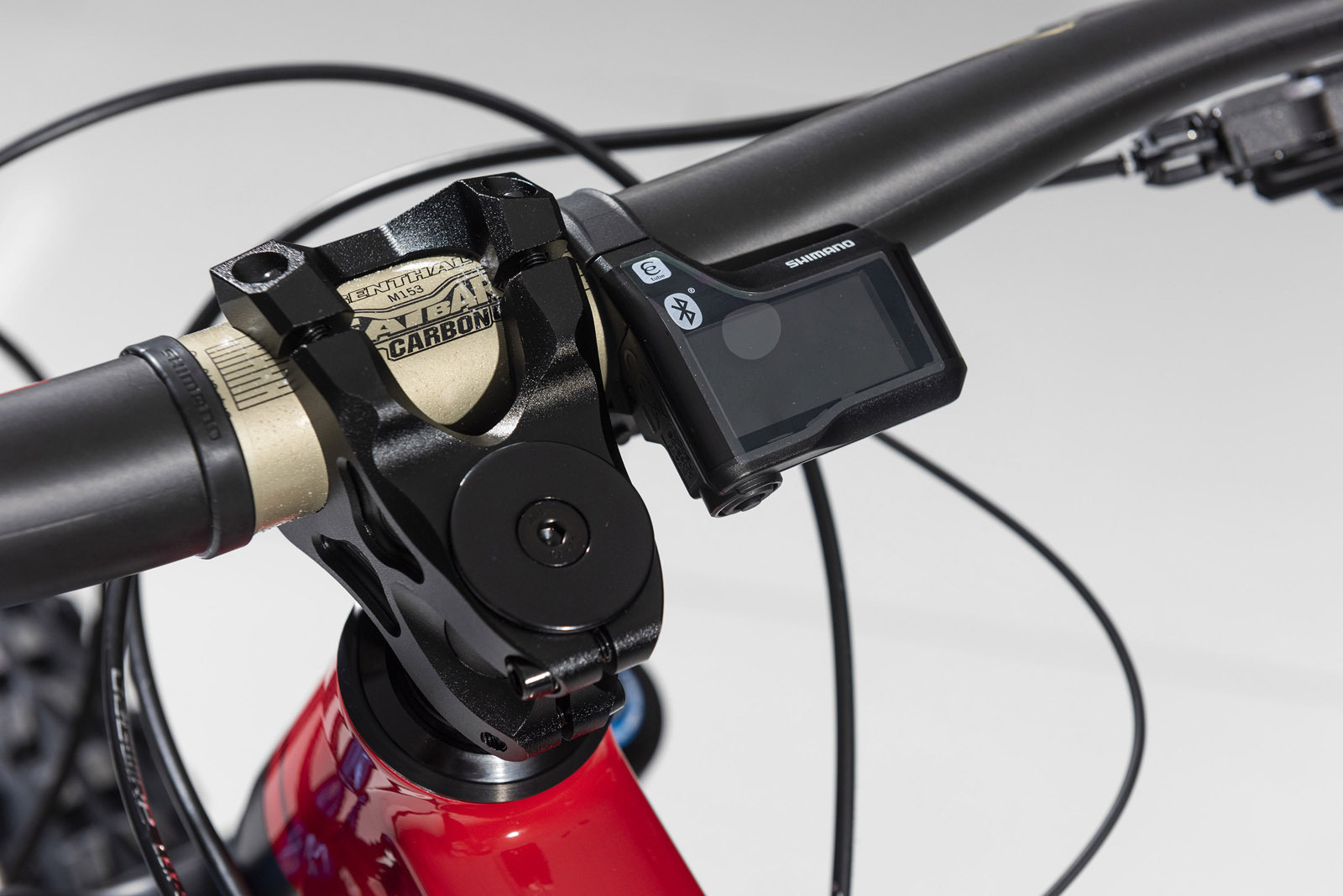

- Shimano Steps E8000 (250Watt - 70Nm - 2,8kg)
- BATTERY
- Shimano - 504Wh
- SUSPENSIONS

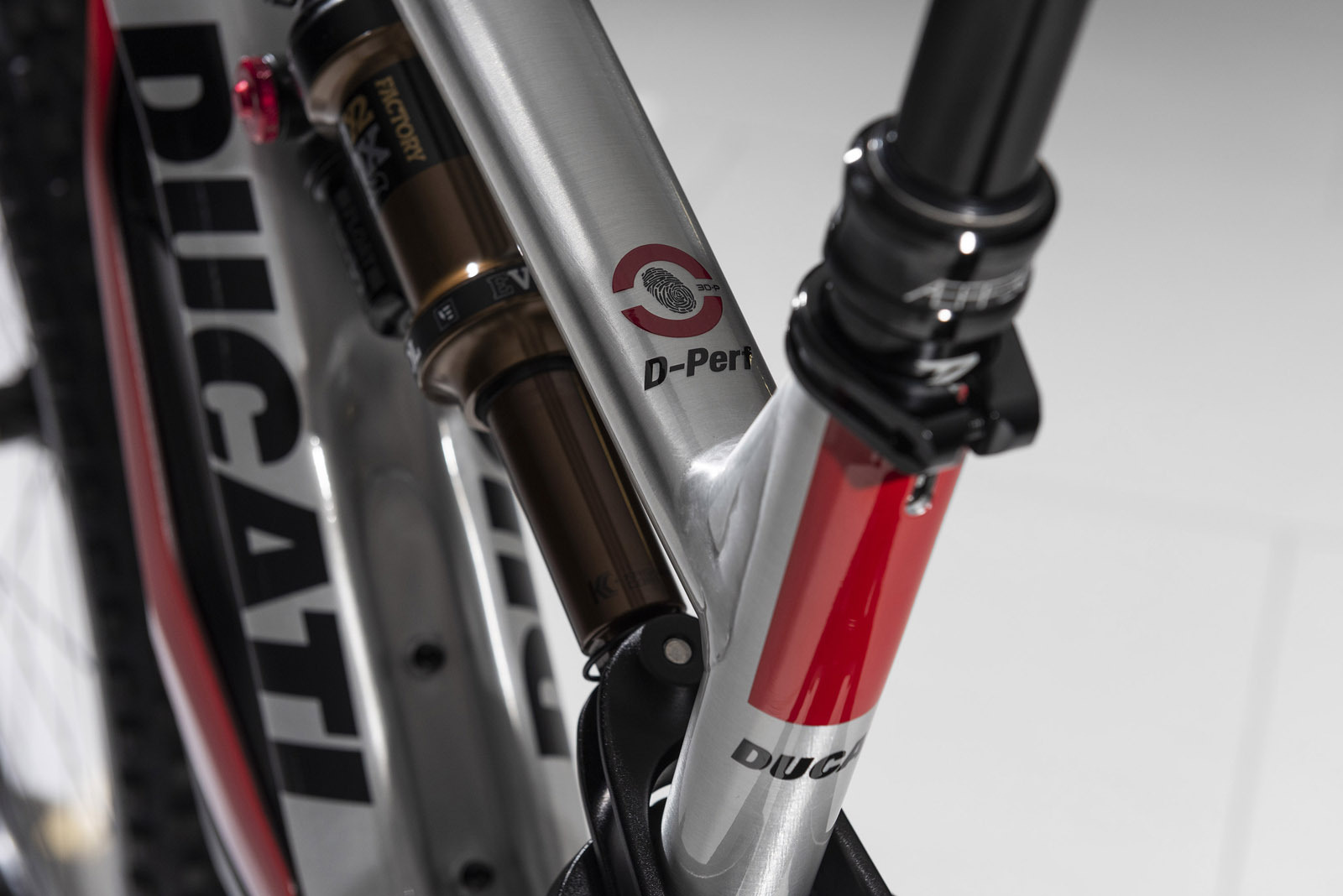

- Front: FOX 36 Float 29 Factory Series Kashima - FIT4 3 position - 170 mm - customized tuning Rear: FOX DPX2 Factory Series - 160 mm - customized tuning
- REAR SUSPENSION LAYOUT

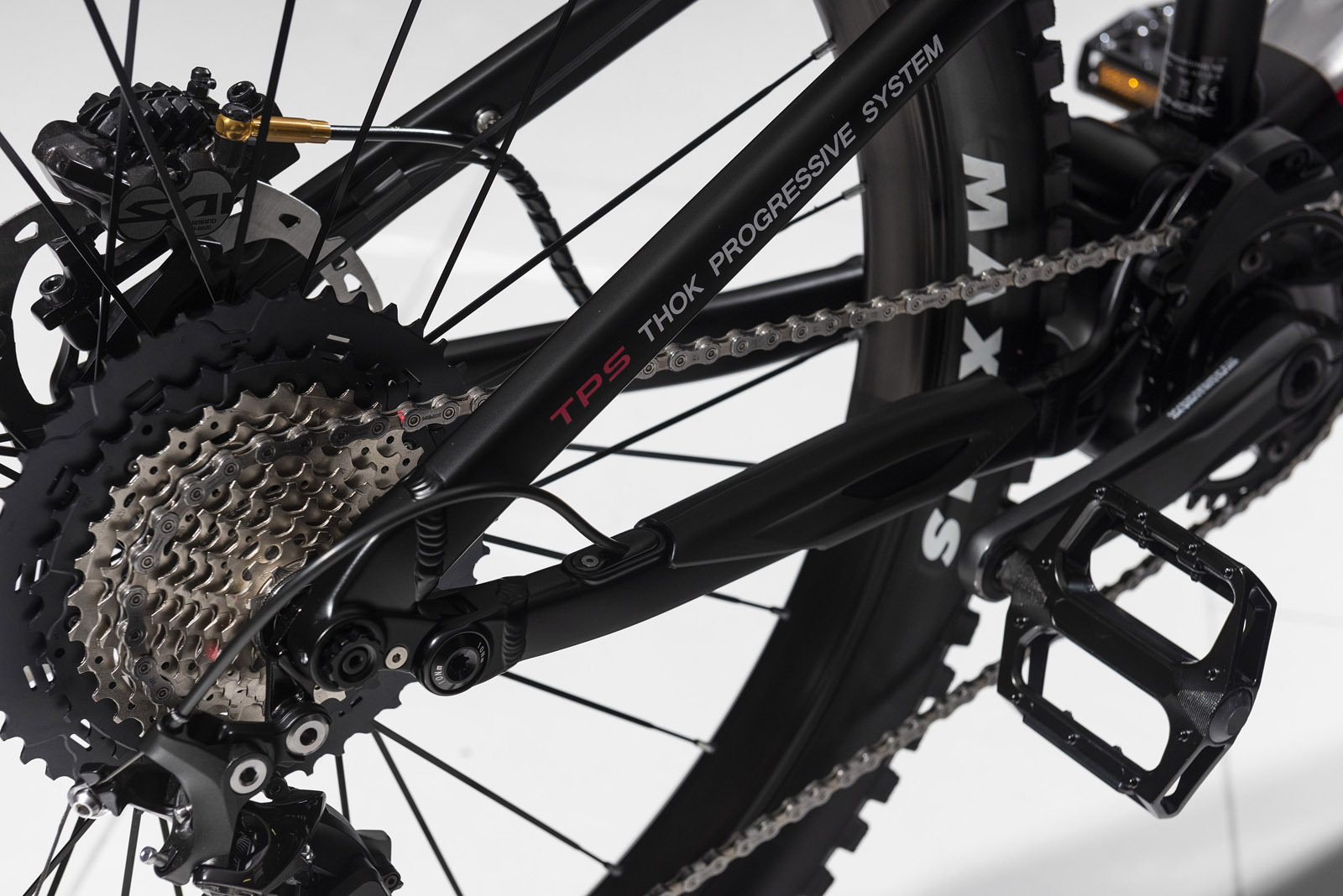

- TPS Thok Progressive System (Horst Link)
- BRAKES

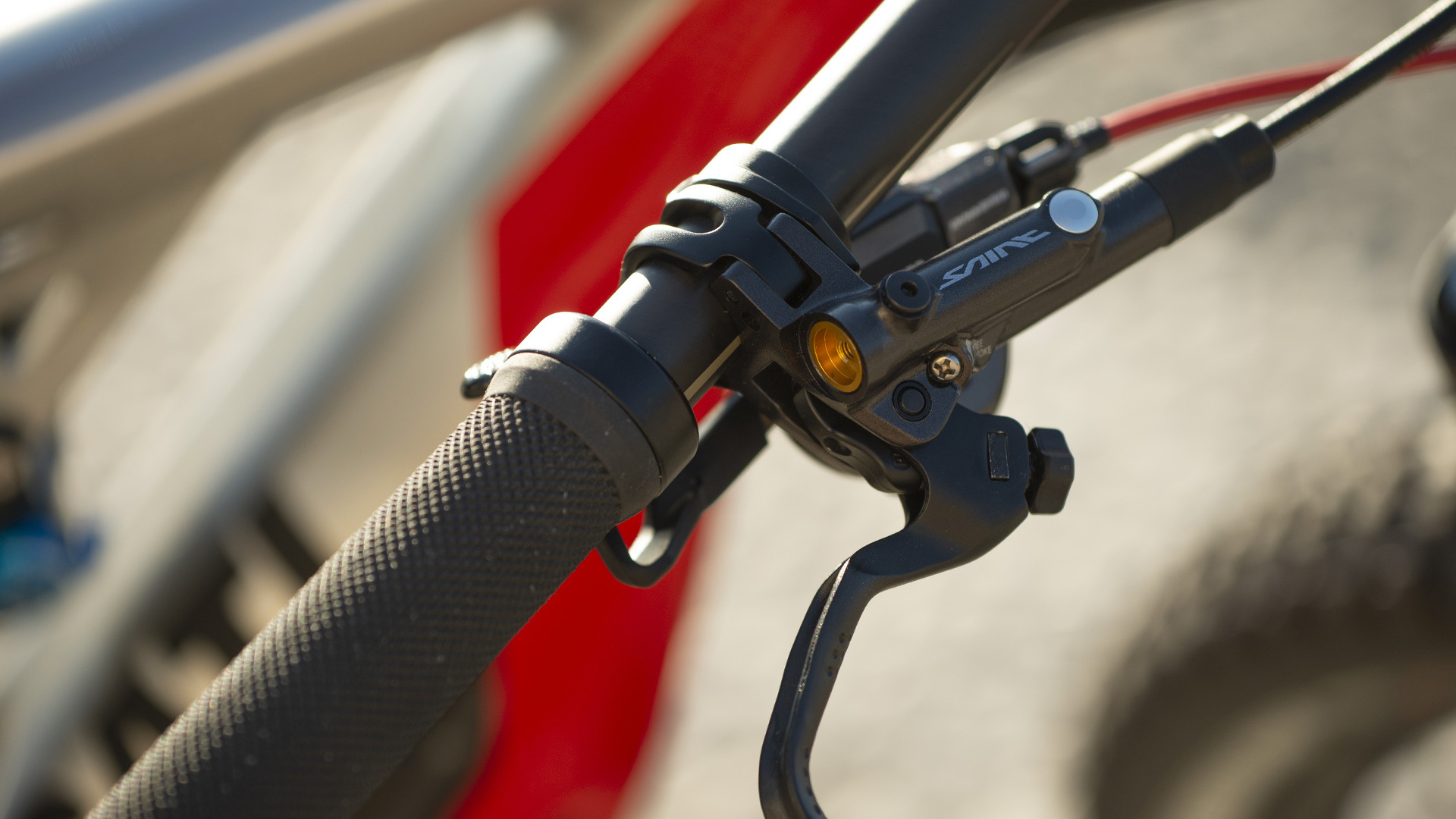

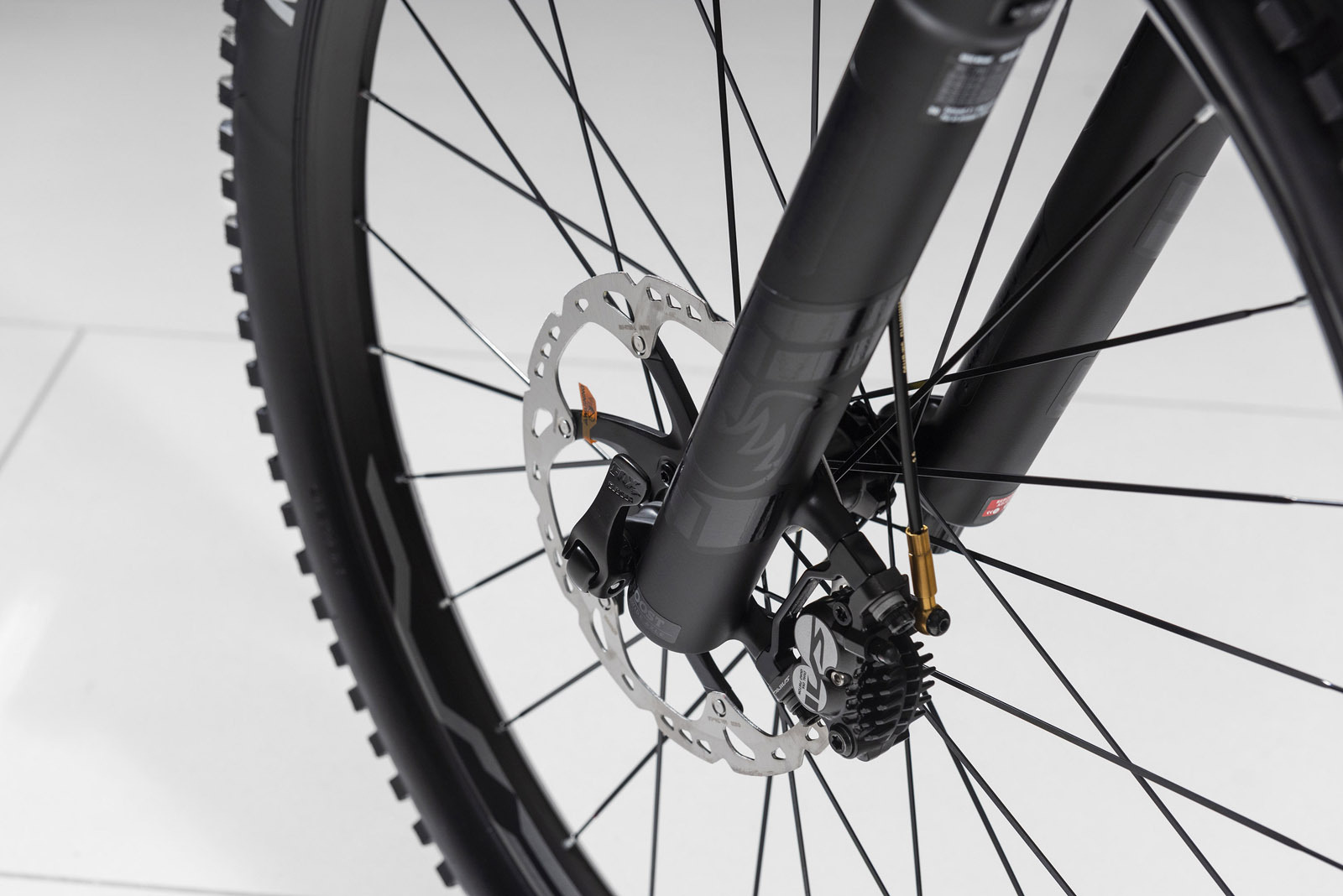

- Shimano Saint - 4 calipers - 203mm front and rear
- WHEELS
- Mavic E-XA Drifter 29”x 30mm front - 27.5x35mm rear
- TIRES
- Rear tire: Maxxis Minion DHR 27,5x2.8 EXO+
Front tire: Maxxis Minion DHF 29x2.6 EXO+ - TRANSMISSON
- Shimano XT - 11 speed - 11-46
- SEAT POST
- Race Face Turbine Dropper post

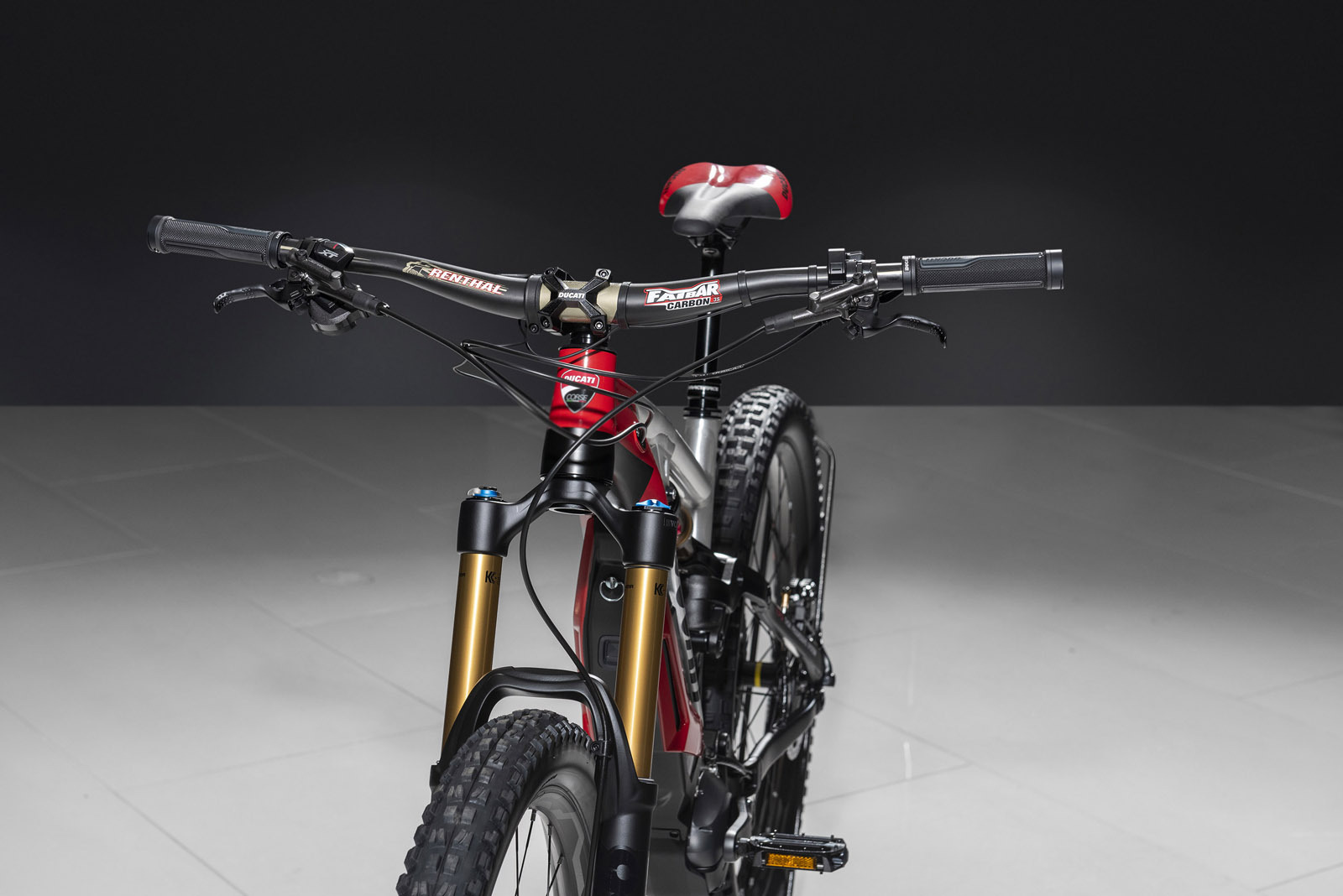

- HANDELBAR

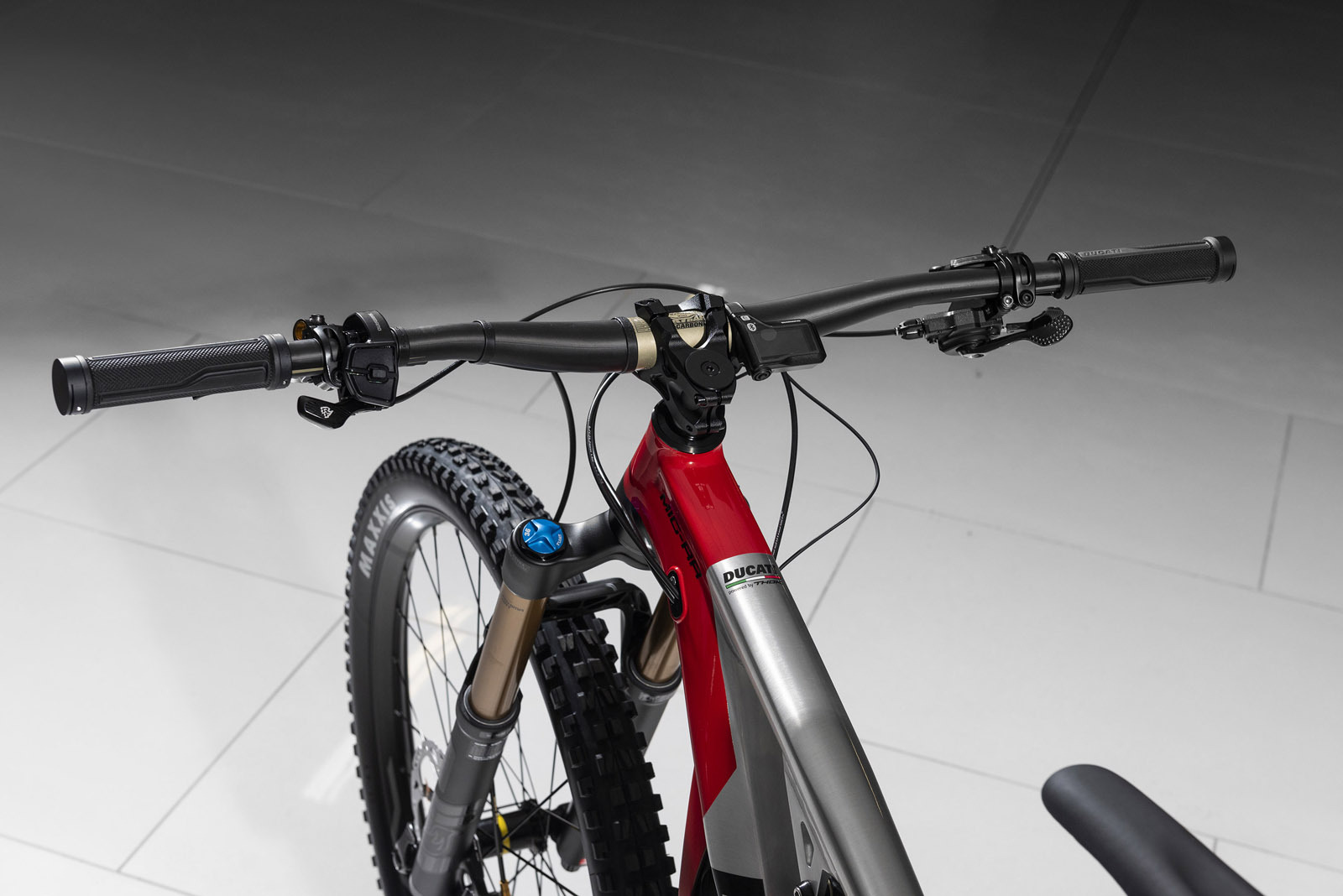

- Renthal 35 Fatbar Lite Carbon
- WEIGHT
- 22,5 kg (size M without pedals)
kr 65000,-
In stock
